I-Beam Monorail Conveyor X348 X458 X678 698 | Conveyor chain | Power and free
- group name
- Power and Free Conveyor Series
- Min Order
- 1 piece
- brand name
- ZMIE chain
- model
- X348 X458 X678 698
- Nearest port for product export
- Shanghai, Ningbo, Wuhan
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Wed, 15 Jan 2025 16:56:42 GMT
Paramtents
Material alloy steel
Standard or Nonstandard Standard
drop forged chain pitch 76.2mm 101.6mm 152.4mm
drop forged chain process forging
drop orged chain material alloy steel
drop forged chain assembly toolless
drop forged chain surface treatment shot peening
dropforged chain color natural,yellow Zinc plated,white Zinc plated
Packging & Delivery
-
Min Order1 piece
Briefing
Drop Forged Chain for overhead conveyor X348 X458 X678 698 drop forged chain
I-Beam Monorail Conveyor
I-Beam Monorail Conveyor
Detailed
Drop Forged Chain for overhead conveyor X348 X458 X678 698
Conveyor chain | Power and free
op
s
ge d type
X TYPE REGULAR TYPE S TYPE
Zmie drop forged chains for overhead conveyor includes X348,X458,X678,698 chain and etc.
The Rivetless Drop Forged Chain is used in a wide range of applications including; the automotive industry, car washes, material handling, meat packing, overhead conveyors, poultry processing, sugar processing, trolley conveyors, and more. We also can provide some other conveyor components to match these chains, like overhead trolley, attachments, pusher dog, caterpillar chain and etc.
Forged rivetless chains are easy and fast assembly and dismantling by hand.
ZMIE forged rivetless chains are manufactured by high alloy steel according to customer requirement and satisfaction.This makes our forged rivetless chains corrosion resistant and high-strength.
The I-Beam Monorail Conveyor is a robust and versatile material handling system widely used in industries such as manufacturing, assembly lines, and paint shops. This system utilizes durable I-beam tracks combined with trolleys and chains to ensure smooth and efficient transportation of materials.
Depending on load requirements, the I-Beam Monorail Conveyor is available in several sizes, with the three most common models being: 3-inch (X-348), 4-inch (X-458), 6-inch (X-678).

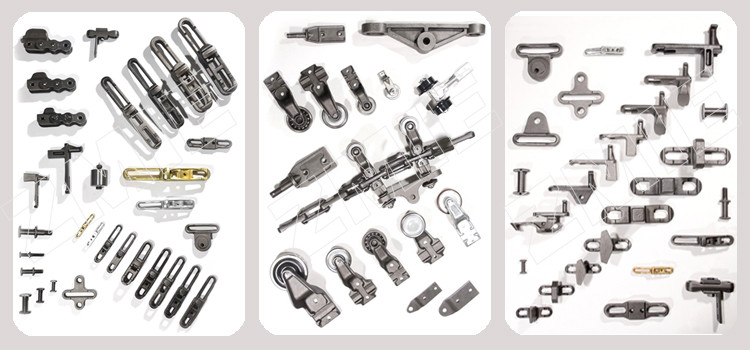

Camelconvey provides a comprehensive range of products for I-Beam Monorail Conveyors, including:
● Chain: 3" (X348 Chain) , 4''(X458 Chain), 6"(X678 Chain)
● Trolley: 3" (X348 Trolley) , 4'' (X458 Trolley), 6"(X678 Trolley)
● Load Bars: 3" (X348 Trolley) , 4''(X458 Trolley), 6"(X678 Trolley),
● Attachments: "H"Attachment, "I"Attachment, "B"Attachment, "C"Attachment.
● Roller Turn Roller: 70X54 for 3" (X348 Chain) and 4''(X458 Chain), 70X70 for 6''(X678 Chain)
● Caterpillar Chain: 160 Roller Chain with drive dogs for 3" (X348 Chain) , 4" (X458 Chain), 6"(X678 Chain).
In addition, we provide 2-inch trolleys and chains designed for lighter load requirements, as well as hand trolleys with capacities of 500 lbs and 2000 lbs. Our product range covers a wide load capacity spectrum, from 125 lbs to 2400 lbs, meeting the needs of various industrial applications.
