group name
Drop Forged Conveyor Chain
Min Order
1 piece
brand name
ZMIE chain
model

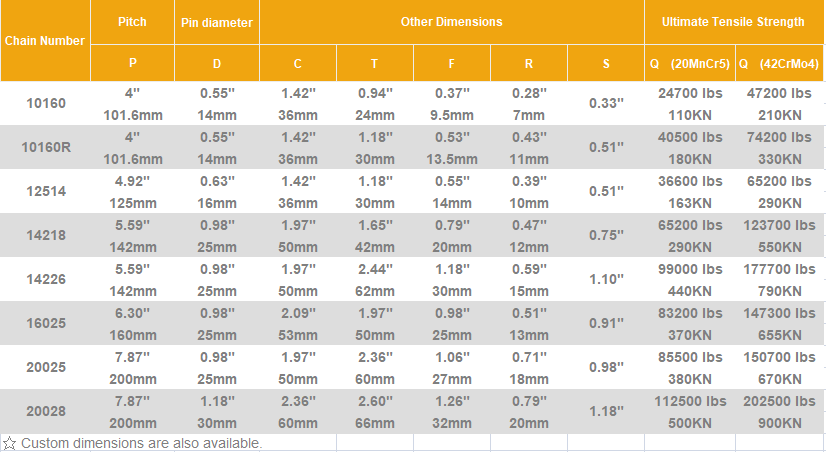

10160/10160R/12514/14218/14226/16025/20025/20028
Nearest port for product export
Shanghai, Ningbo, Wuhan
Delivery clauses under the trade mode
FOB, CFR, CIF, EXW
Acceptable payment methods
T/T, L/C, D/P D/A
update time
Thu, 08 Jun 2023 17:29:19 GMT

Paramtents

  • material alloy steel, stainless steel

  • process drop forged

Packging & Delivery

  • Min Order1 piece

Briefing

Drop forged link chain with plastic flight | Forged scraper conveyor chain | Link chain china suppliers

Detailed

ZMIE FORGED LINK CHAIN





Forged fork link chain has proven to be one of the most reliable conveying mediums offering a combination of versality, strength and abrasion resistance.

Forged fork link chains are manufactured from special heat-treated alloy steel casehardened or through hardened. All our links are heat treated in house providing consistent optimum hardness and tough core for maximum shock resistance and highly wear resistance surface ideal in handling abrasive materials.



Forged fork Link chains are assembled with forged links to design conveyor belts that are used for conveying goods and heavy loads in industrial sector. Our Forged Link is made in complete adherence with international quality standards using best quality materials. We hold the expertise to customize these chains as per the needs of the clients.



ImageChina conveyor chain



drop forged chain

14219

14228

China conveyor chain

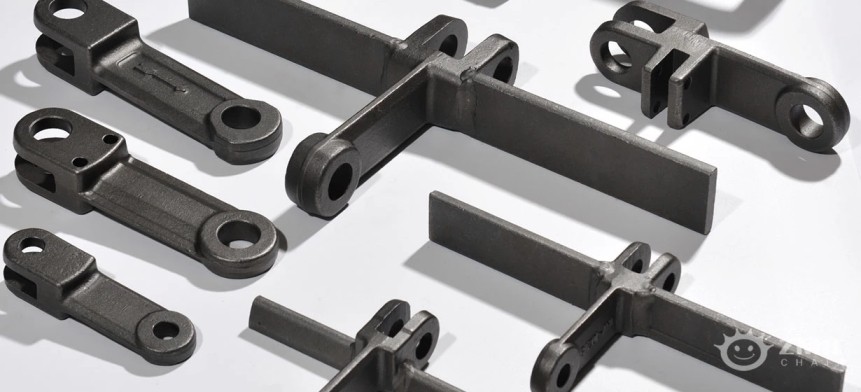

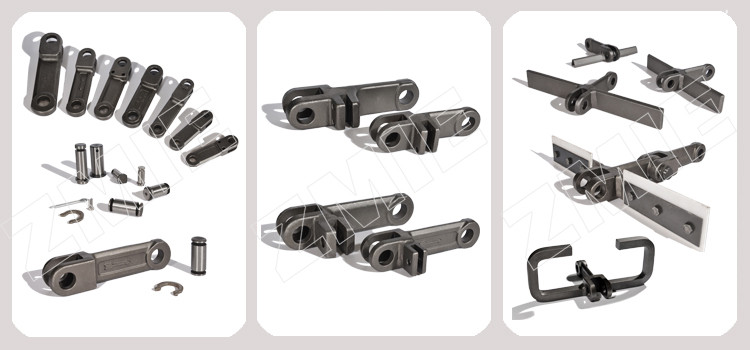

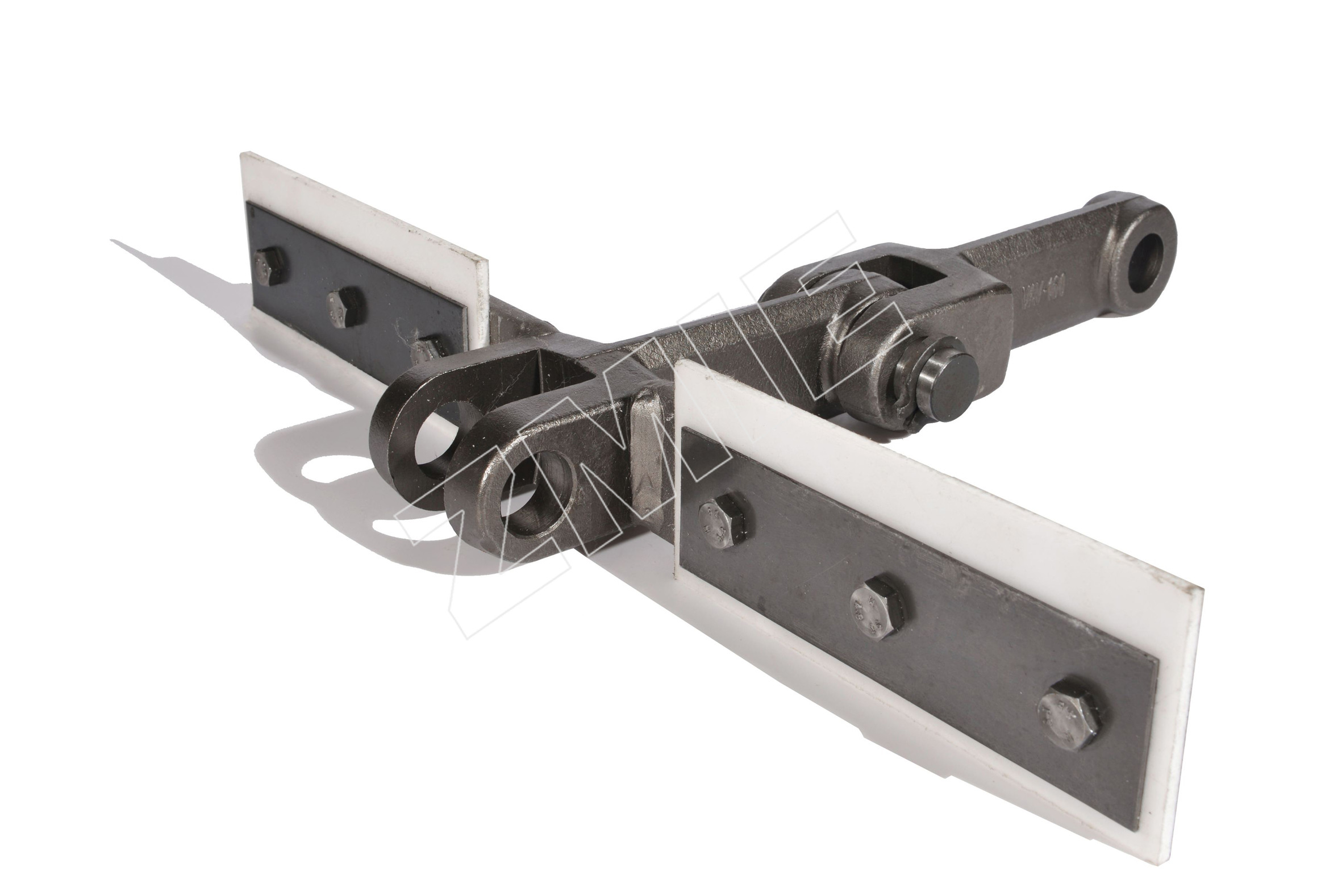

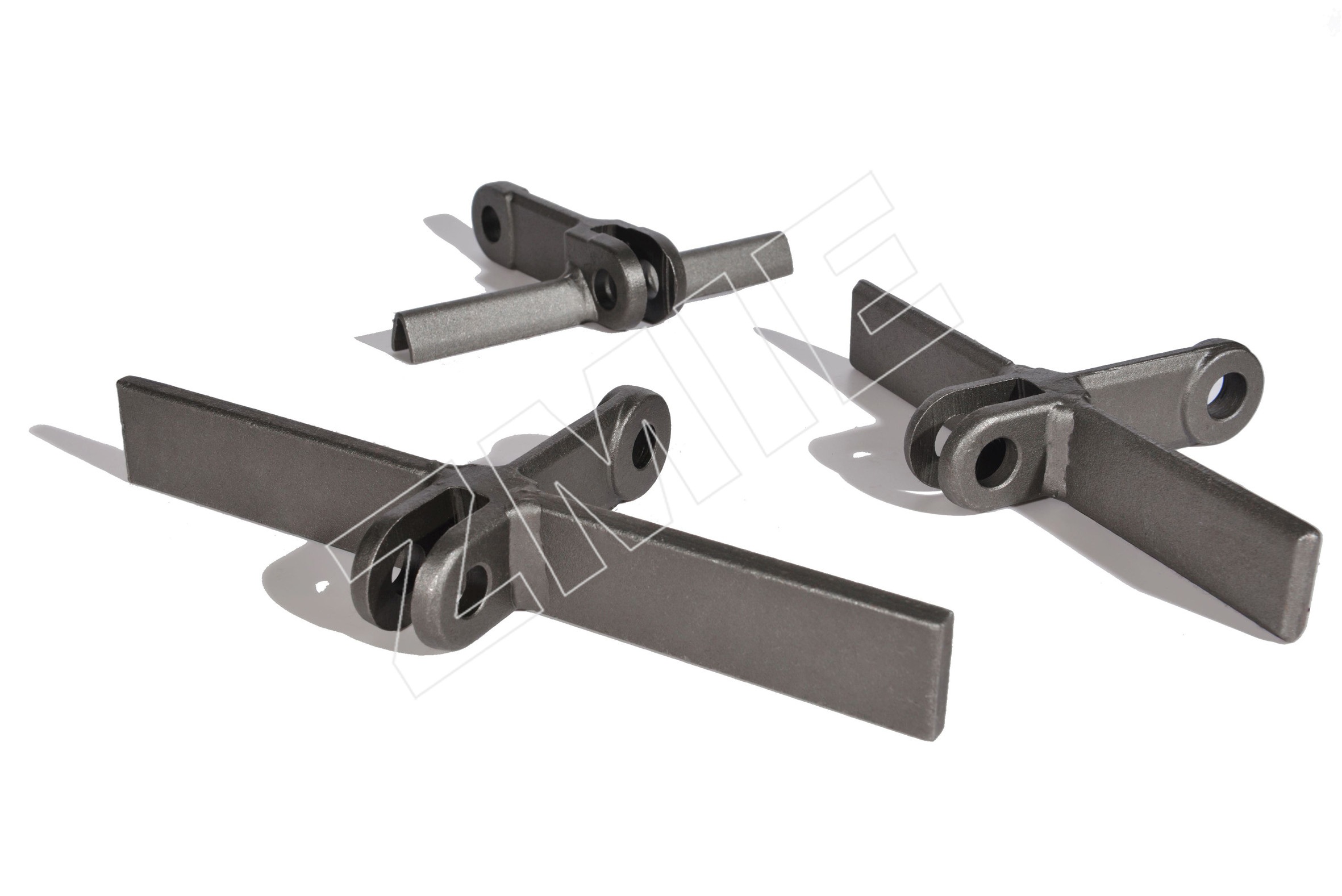

The Drop forged link chains are also called forged chains or scraper chains. The Drop forged link chains supplied by ZMIE are made of heat treated high grade alloy steel, such as material 42CrMo, 20CrMnTi and so on. Their links can be equipped with plastic flight or steel scrapers. We have several different types of the scrapers. It can be designed vertical, horizontal and inclined, which depends on the customers need. It is the best choice for many bulk materials such as powder, granules, flakes and blocks.

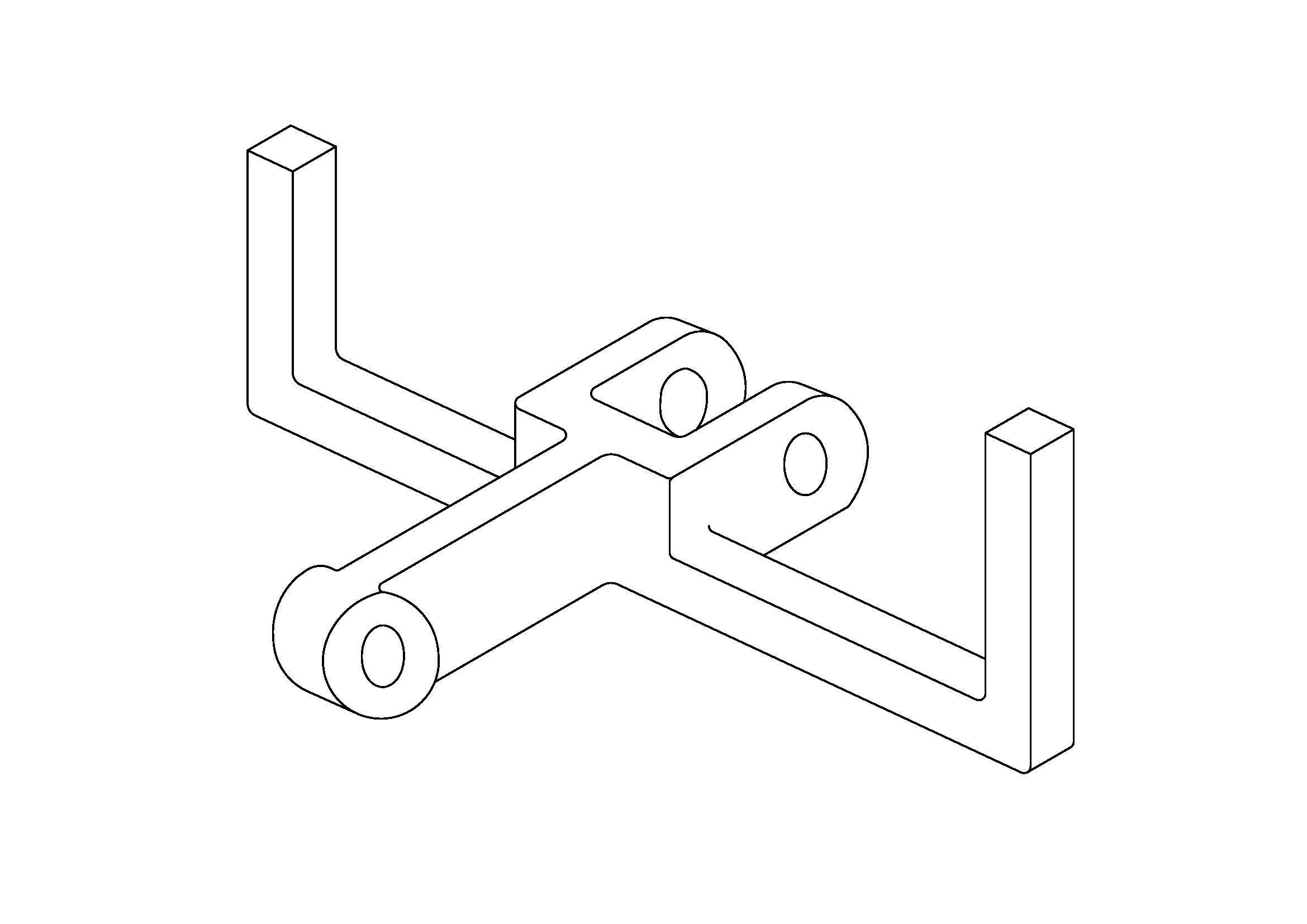

The drop forged fork link chain is designed with a rib-shape and is for a continuous conveyor system. The conveyor path can be horizontal, inclined and vertical. It is the best choice for many bulk materials such as powders, granules, flakes, and blocks. We provide different types of drop forged fork link chain products. All have solid shaft pin designs and can be assembled for light or heavy duty.

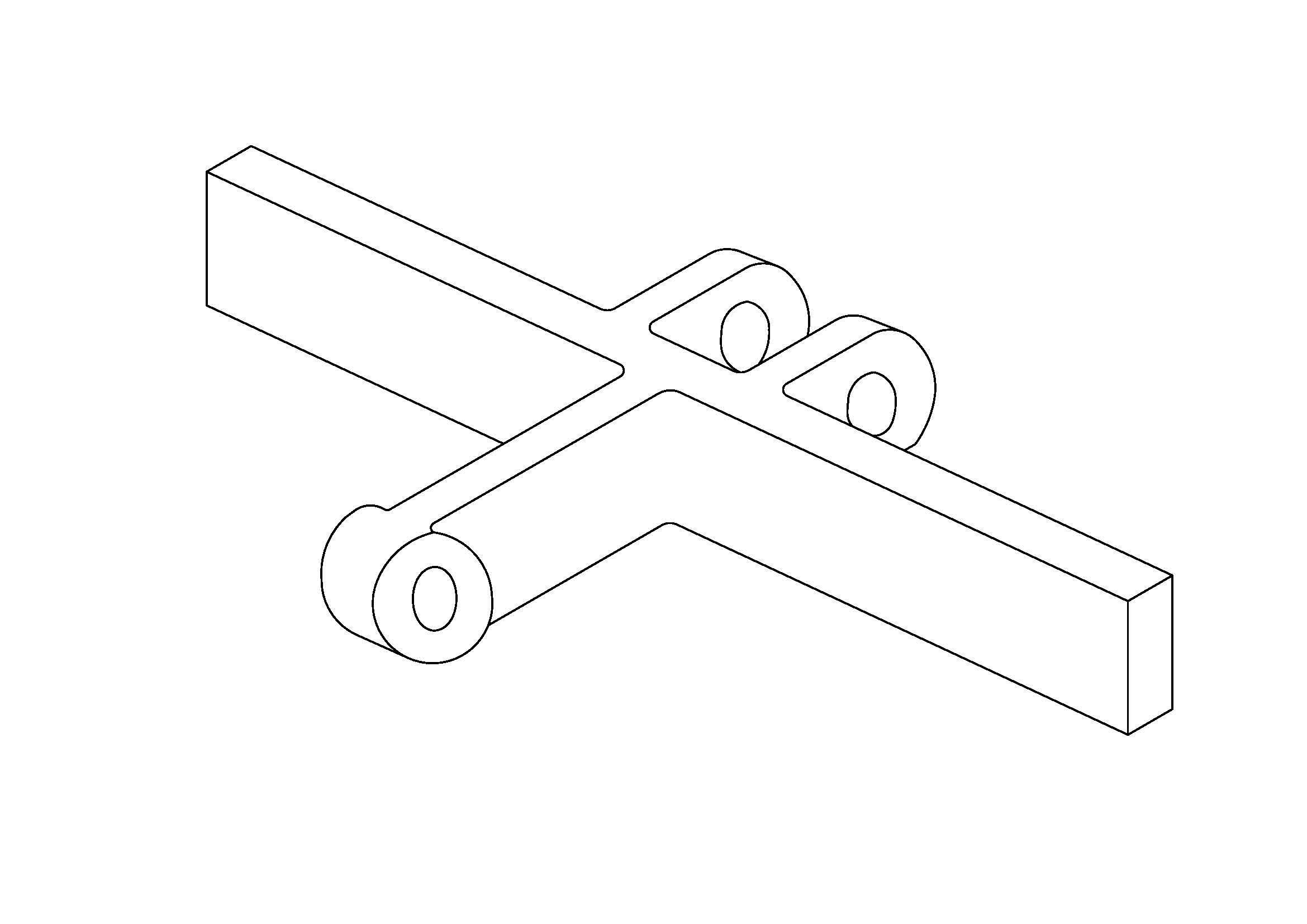

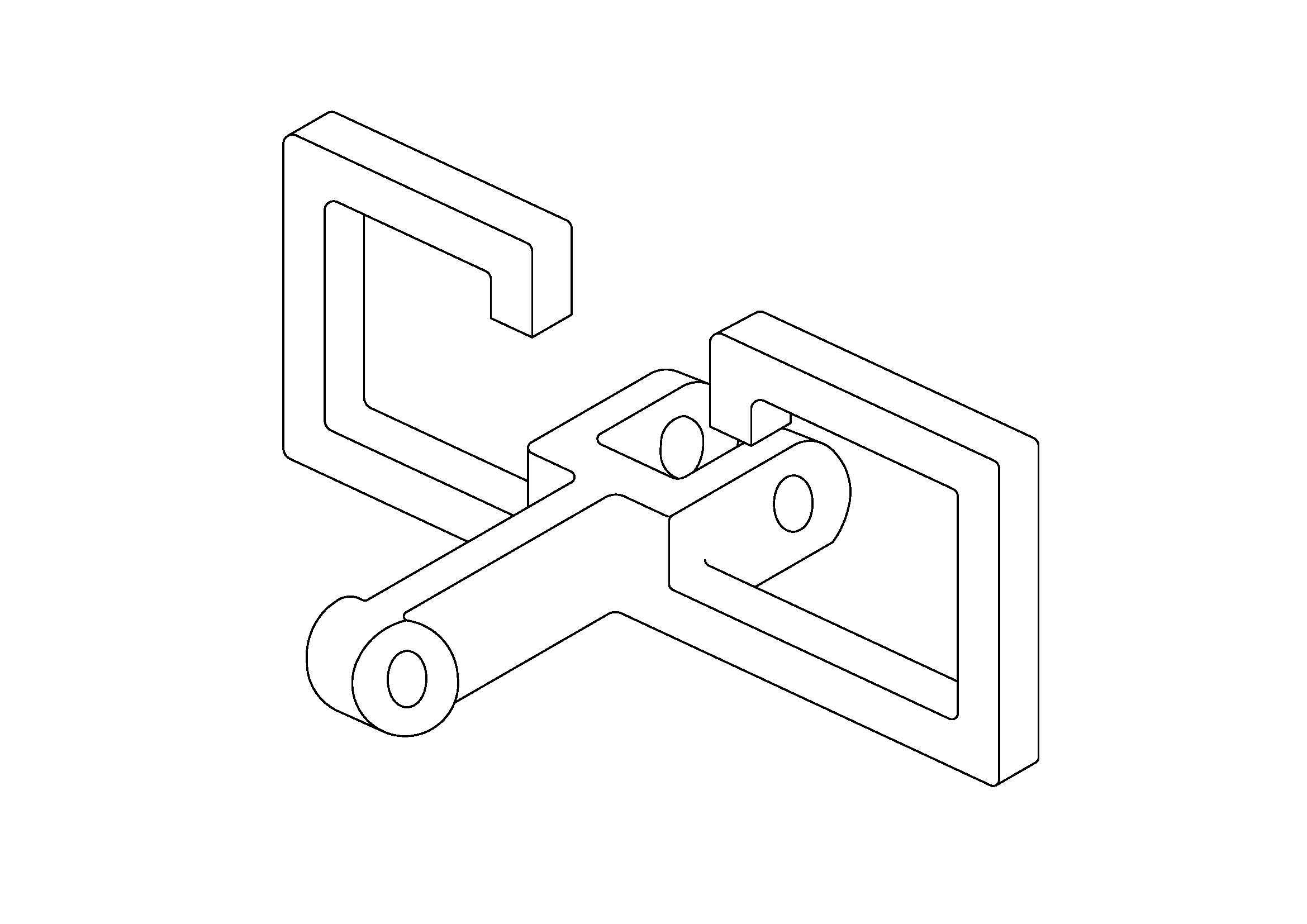

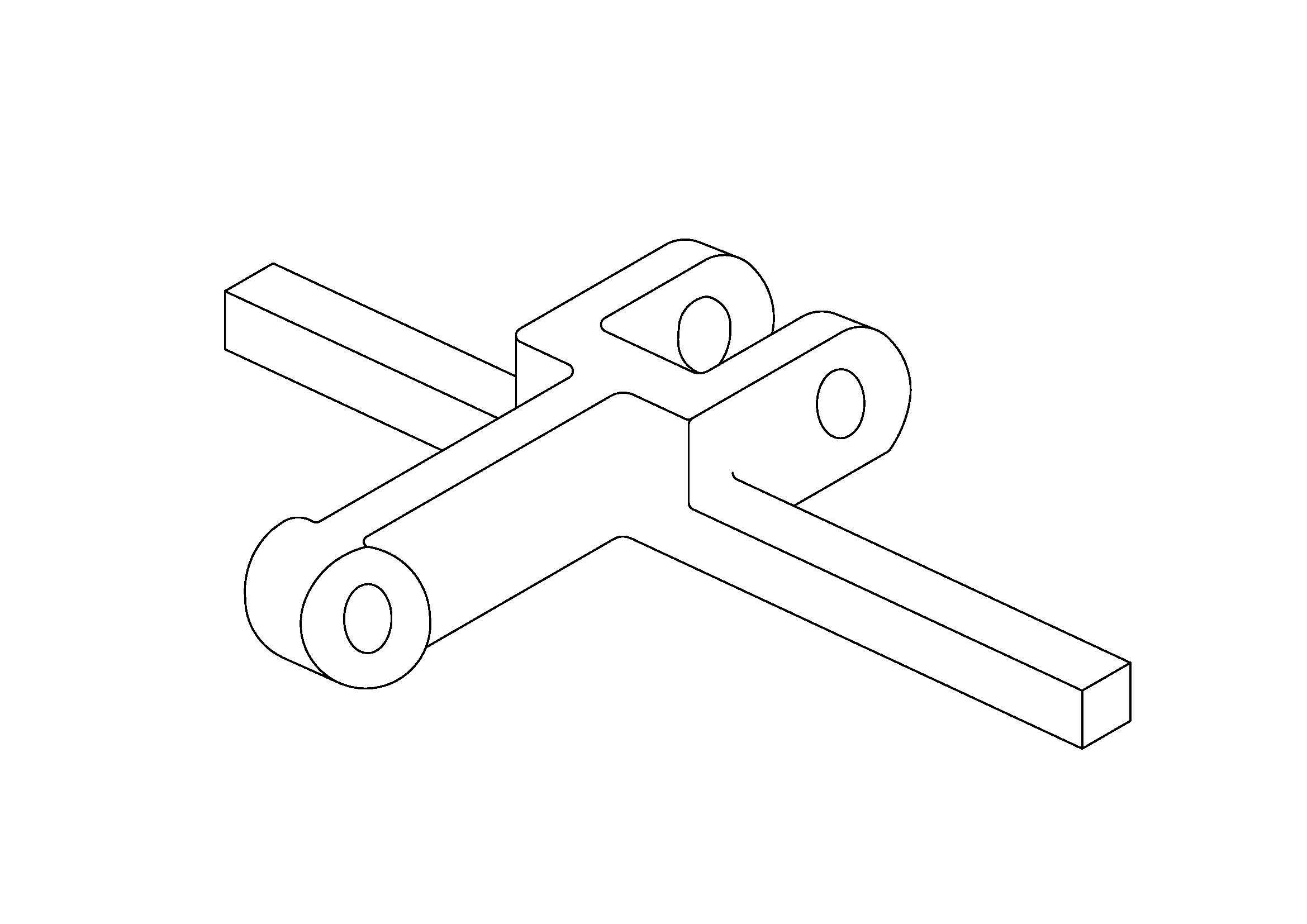

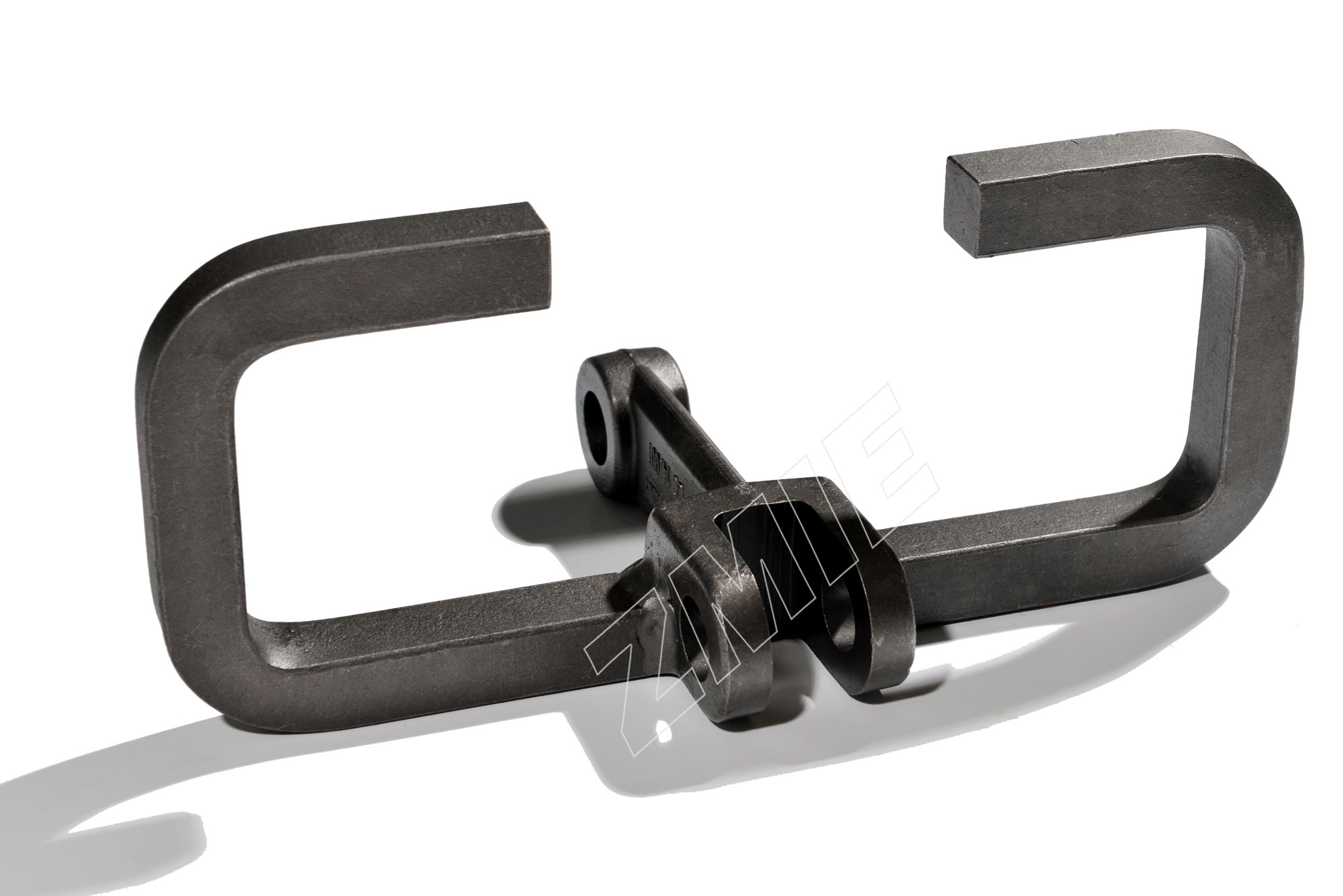

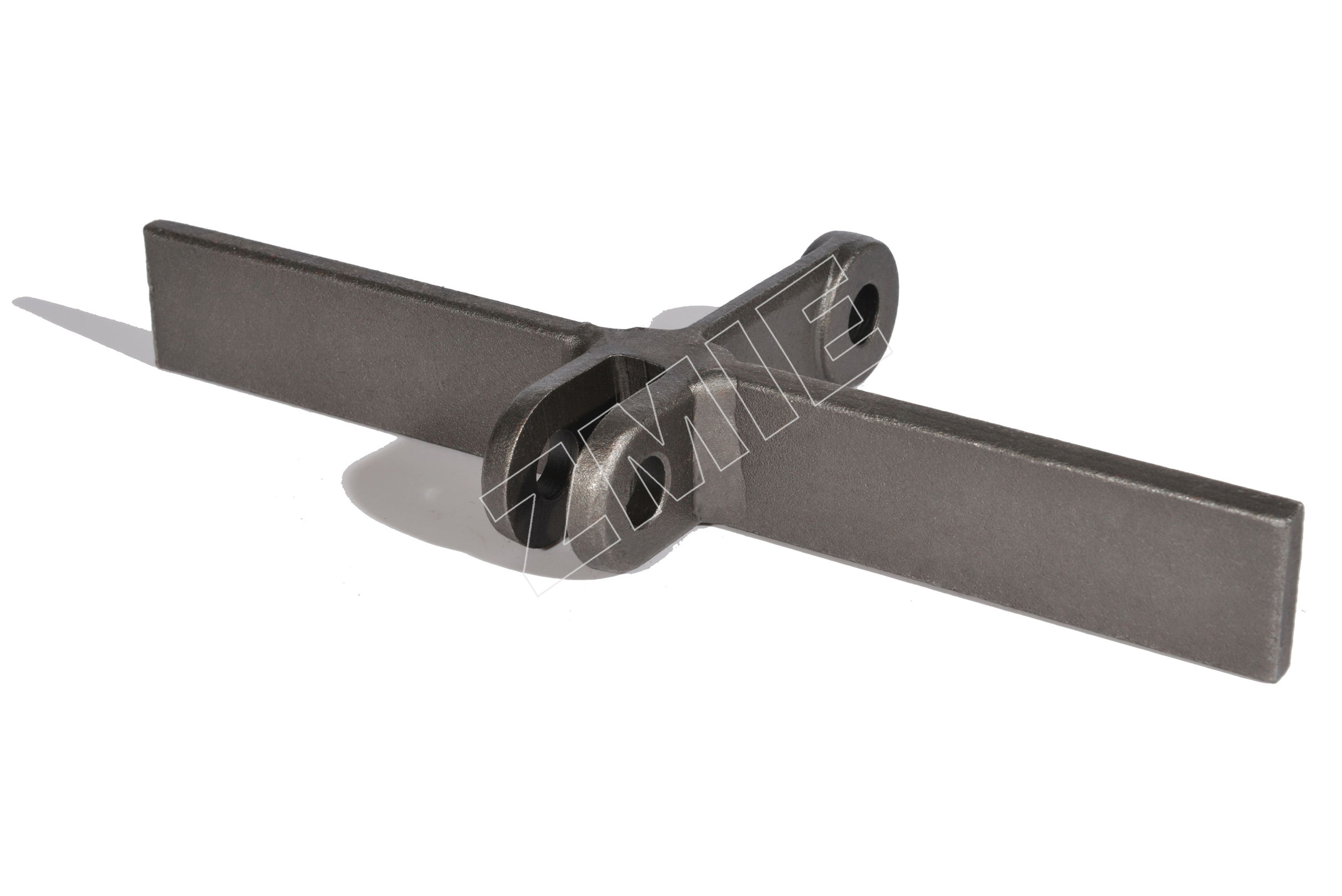

The drop forged fork link chain is also known as a flight conveyor or scraper conveyor, where the fork links can be welded with different styles of flights or scrapers. We provide many options to match all customers’ unique conveyor designs. All of them have the design of solid shaft pin.



China drop forged chain
